Brend 1

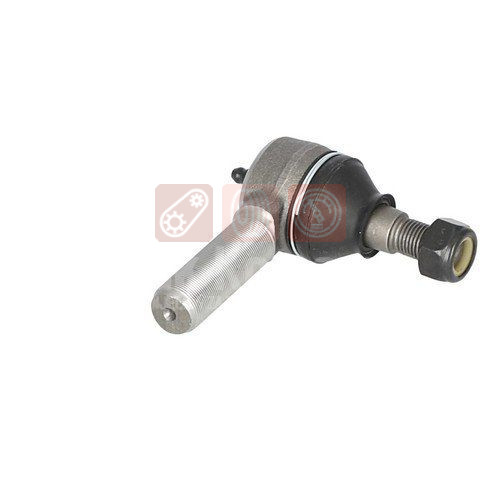

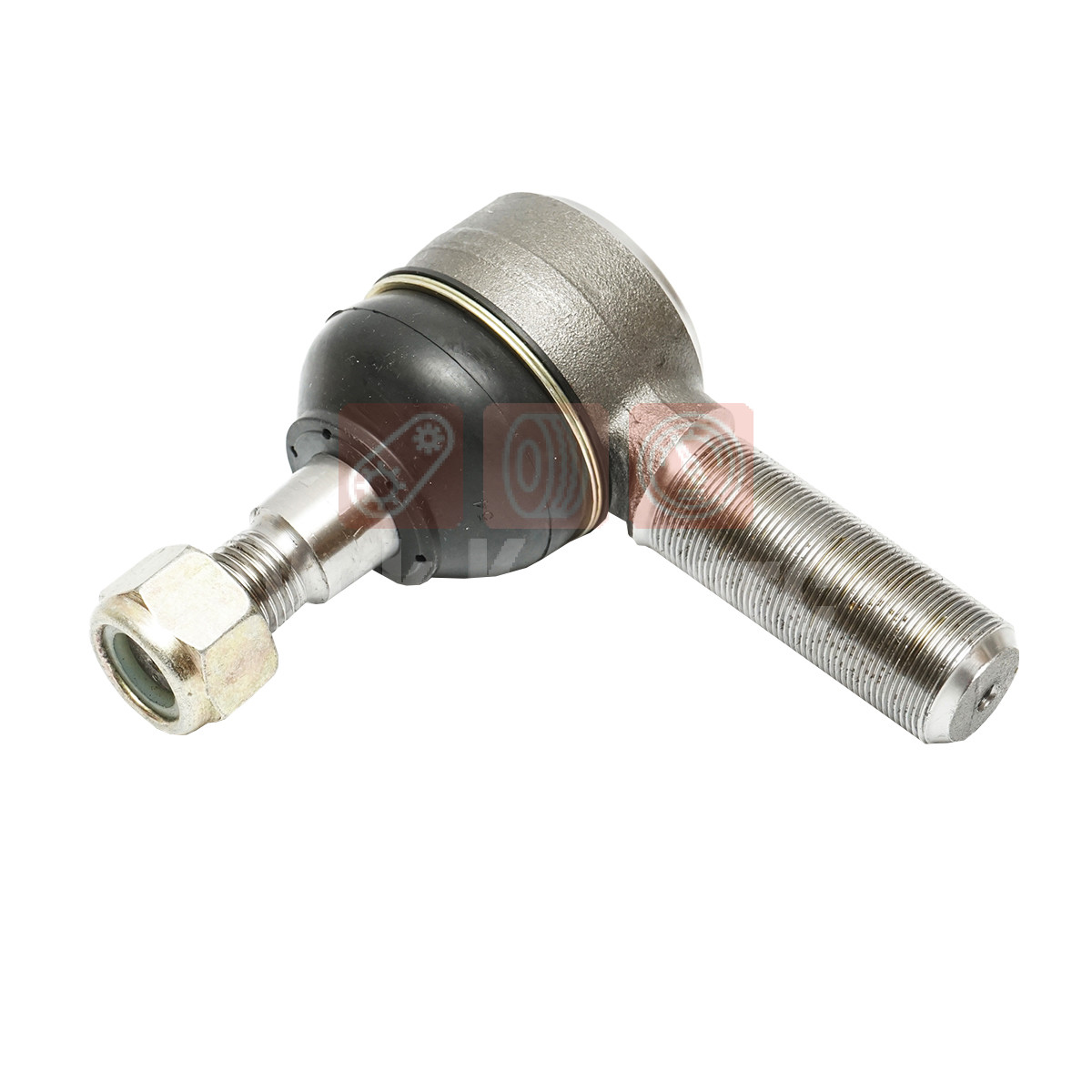

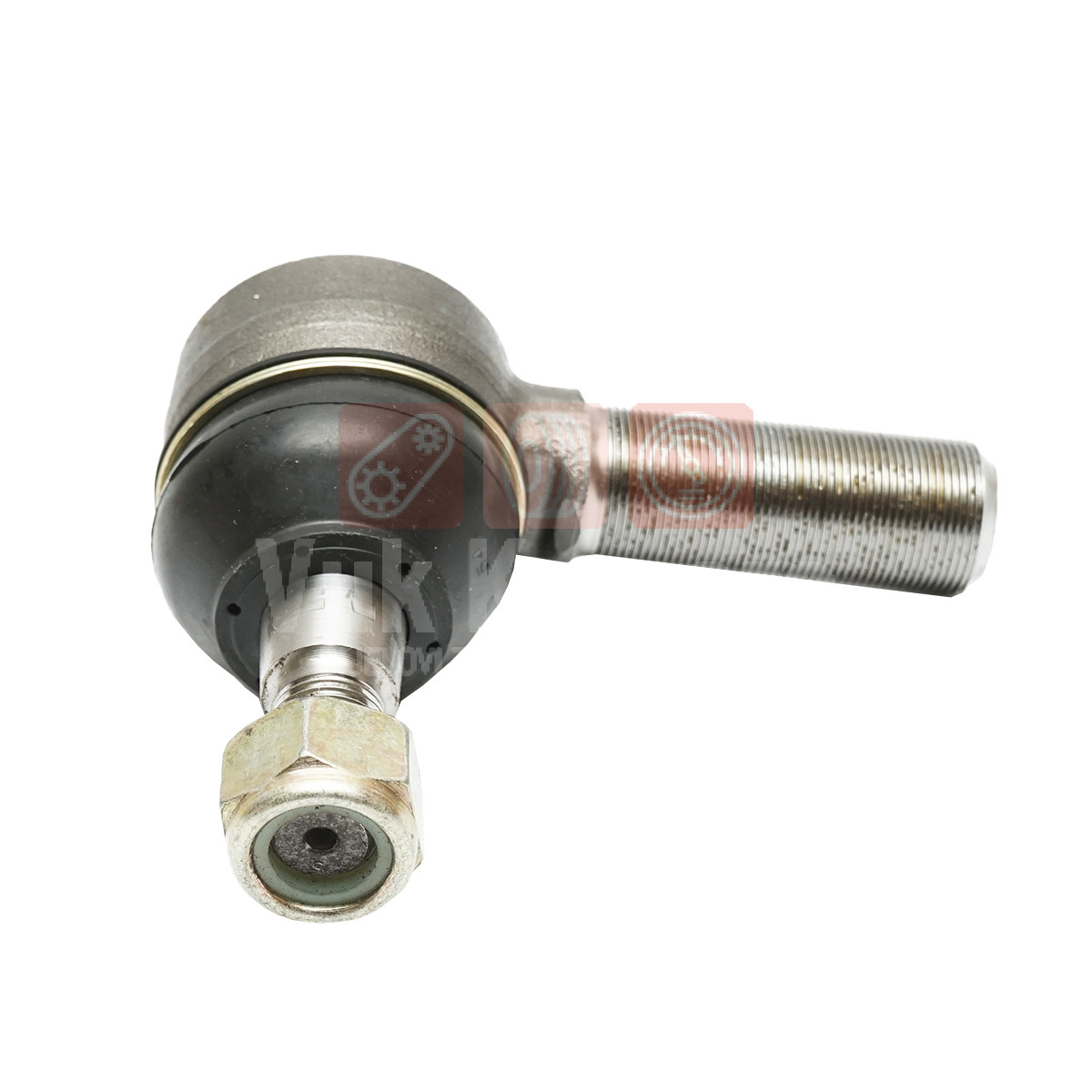

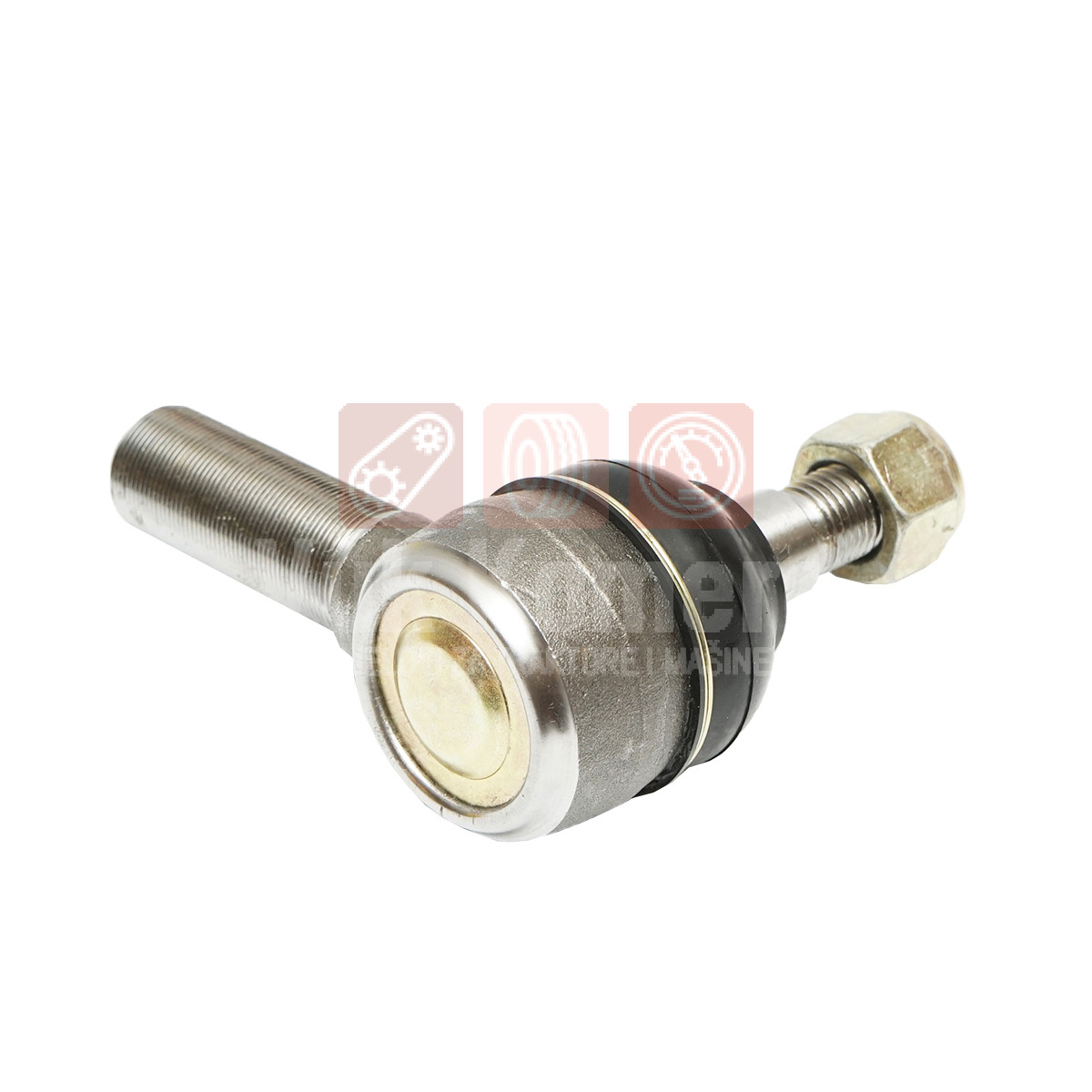

KRAJNICA 16,2-18,3 M20X1 FIAT DESNA 55-66 110-90

  • Dostupnost: Na stanju
  • Brend: Breckner
  • SKU: 42504
  • Kataloški broj: 4987961

Moguće poručiti Vrijeme dostave: 10 dana

Opis Proizvoda

Kataloški brojevi artikla:
  • 4987961
  • 4954941
  • ODGOVARA ZA:
    Case-IH:

    AVJ Serija: AVJ55, AVJ60, AVJ70
    JX Serija: JX80, JX90, JX95
    JXN Serija: JX1070N, JX1075N, JX1095N
    JXV Serija: JX1060V, JX1070V, JX1075V, JX1095V
    Quantum Serija: 105N, 105V, 65V, 75N, 75V, 85N, 85V, 95N, 95V
    VJ Serija: VJ60, VJ70, VJ80

    Fiat:

    46 Serija: 55-46, 55-46DT, 60-46, 60-46DT, 65-46, 65-46DT
    56 Serija: 55-56, 55-56DT, 65-56, 65-56DT, 70-56, 70-56DT, 70-56L
    66 Serija: 35-66, 45-66, 45-66DT, 45-66S, 45-66V, 50-66, 50-66DT, 50-66S, 55-66, 55-66DT LP, 55-66LP, 55-66S, 55-66V, 56-66S, 60-66, 60-66DT, 60-66F, 60-66LP, 60-66S, 65-66, 65-66S, 70-66, 70-66DT, 70-66F, 70-66LP, 70-66S, 70-66V, 80-66, 80-66DT, 80-66F, 80-66S
    76 Serija: 45-76V, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-76F, 60-76FDT, 70-76DT, 70-76F, 70-76LP, 70-76V, 80-76F
    86 Serija: 50-86SV, 50-86V, 55-86F, 55-86FDT, 55-86SV, 55-86V, 55-86VDT, 60-86F, 60-86FDT, 60-86SV, 60-86V, 60-86VDT, 62-86F, 70-86SV, 70-86SVDT, 70-86V, 70-86VDT, 72-86F, 72-86LP, 82-86DT, 82-86F, 82-86FDT, 82-86LP
    88 Serija: 55-88, 55-88DT, 60-88, 60-88DT, 65-88, 65-88DT, 70-88, 70-88DT, 80-88, 80-88DT
    90 Serija: 100-90, 100-90DT, 110-90, 110-90DT, 55-90, 55-90 DT, 60-90, 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-90, 85-90DT, 90-90, 90-90DT
    93 Serija: 60-93, 60-93DT, 65-93, 65-93DT, 72-93, 72-93DT, 82-93, 82-93DT, 88-93
    94 Serija: 60-94, 65-94, 65-94DT, 72-94, 72-94DT, 82-94, 82-94DT, 88-94
    Someca Serija: 350DT, 466, 466DT, 500DT, 566, 570, 580, 650, 666, 670, 680, 750, 766, 780, 880, 980
    Winner Serija: F100, F100Dal, F100Fino, F110, F115, F120, F130, F140

    Ford:

    30 Serija: 3830 (2WD), 4030 (2WD), 4230 (2WD), 4430 (2WD)
    35 Serija: 3435 (2WD), 3935 (2WD), 4135 (2WD)

    New Holland:

    T4 Serija: T4.105 V, T4.65 V, T4.75 V/N/F, T4.85 V/N/F, T4.90F, T4.95 V
    T4000N Serija: T4030N, T4040N, T4050N, T4060N
    T4000V Serija: T4020V, T4030V, T4040V, T4050V, T4060V
    TDD Serija: TD75D, TD80D, TD80D Plus, TD90D, TD90D Plus, TD95D, TD95D Plus
    TNN Serija: TN65N, TN75N
    TNNA Serija: TN70NA, TN75NA, TN95NA
    TNV Serija: TN55V, TN65V, TN75V
    TNVA Serija: TN60VA, TN70VA, TN75VA, TN95VA

    Specifikacija

    DIMENZIJE

    Dužina: 80mm
    Navoj 1 Ø A (mm): M20 x 1,
    Navoj 2 Ø B (mm): M14 x 1.5,
    Konus Ø C (mm): 18 - 16.3mm,
    Dužina konusa D (mm): 18.6mm

    Navedene informacije su informativnog karaktera i bazirane su na najnovijim dostupnim informacijama.

    Kompatabilnost modela

    Fiat:
    - 55-46, 60-46, 65-46, 55-56, 65-56, 70-56, 35-66, 45-66, 50-66, 55-66, 60-66, 65-66, 70-66, 80-66, 45-76, 55-76, 60-76, 70-76, 80-76, 50-86, 55-86, 60-86, 62-86, 70-86, 72-86, 82-86, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 60-93, 65-93, 72-93, 82-93, 88-93, 60-94, 65-94, 72-94, 82-94, 88-94, 350, 466, 500, 566, 570, 580, 650, 666, 670, 680, 750, 766, 780, 880, 980, F 100, F 110, F 115, F 120, F 130, F 140
    New Holland:
    - T4.65, T4.75, T4.85, T4.90, T4.95, T4.105, TD 55, TD 60, TD 65, TD 70, TD 75, TD 80, TD 90, TD 95
    Ford:
    - 3830, 4030, 4230, 4430, 3435, 3935, 4135
    Case IH:
    - AVJ 55, AVJ 60, AVJ 70, JX 80, JX 90, JX 95, JX 1070, JX 1075, JX 1095, Quantum 65, Quantum 75, Quantum 85, Quantum 95, Quantum 105, VJ 60, VJ 70, VJ 80

    Breckner

    Breckner je Njemački brend rezervnih dijelova za traktore i mehanizaciju.

    Dijelovi su različitog porijekla ali svi zadovoljavaju najveće njemačke standarde.

    Više o brendu na www.brecknergermany.de
